ENEL – SUPPLY AND INSTALLATION OF 18MVA GENERATING SETS INTENDED FOR THE ELECTRIFICATION OF THE AEOLIAN ISLANDS

Supply and installation of 12 generating sets with a total power of 18 MVA, installed for the production of electric energy to supply the Islands and local users, in continuous operation as the islands have no connection to the grid. The supply also included fume abatement systems with engines optimized for emissions according to TA-Luft measurement standard.

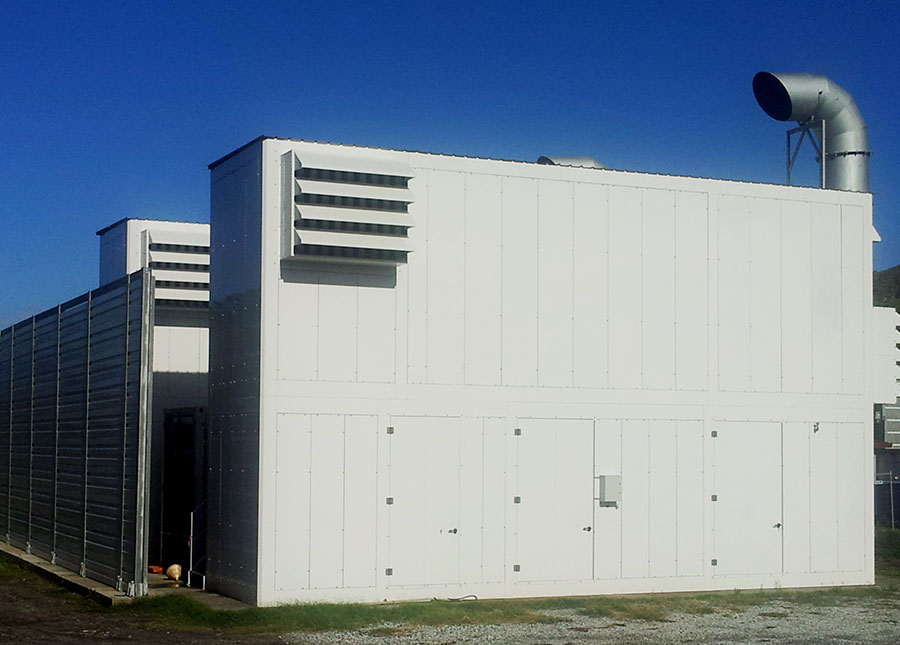

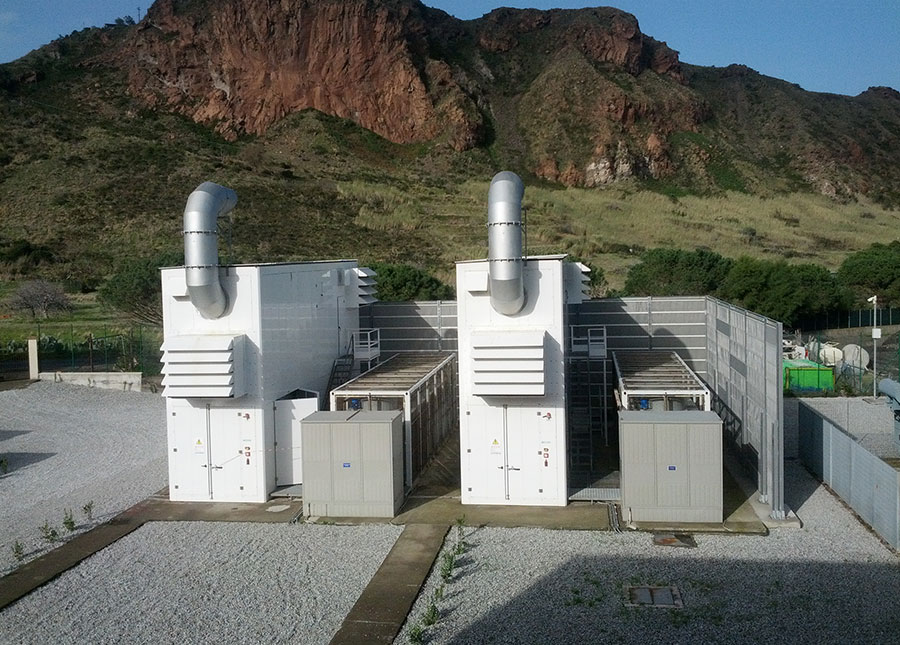

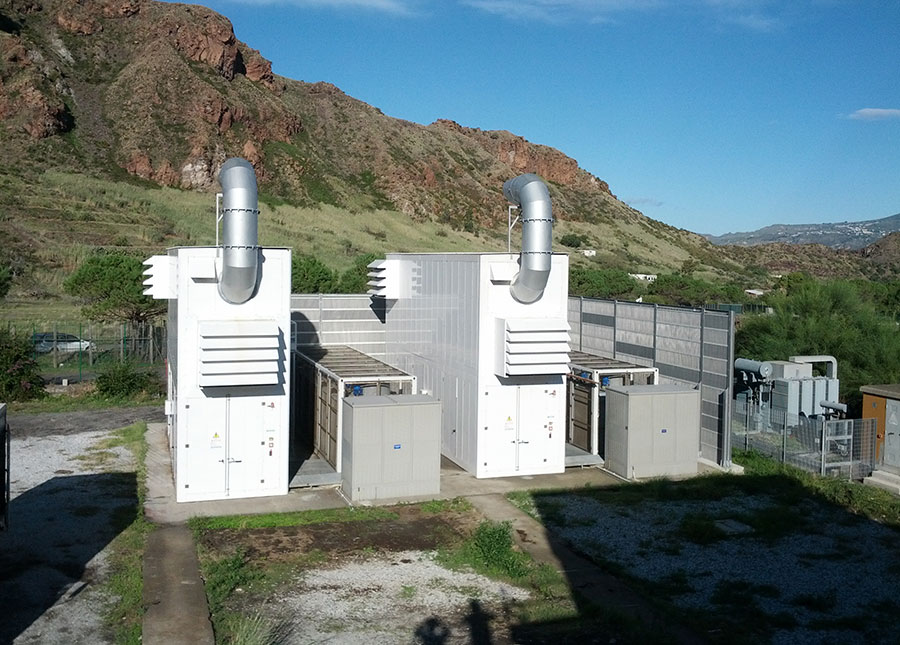

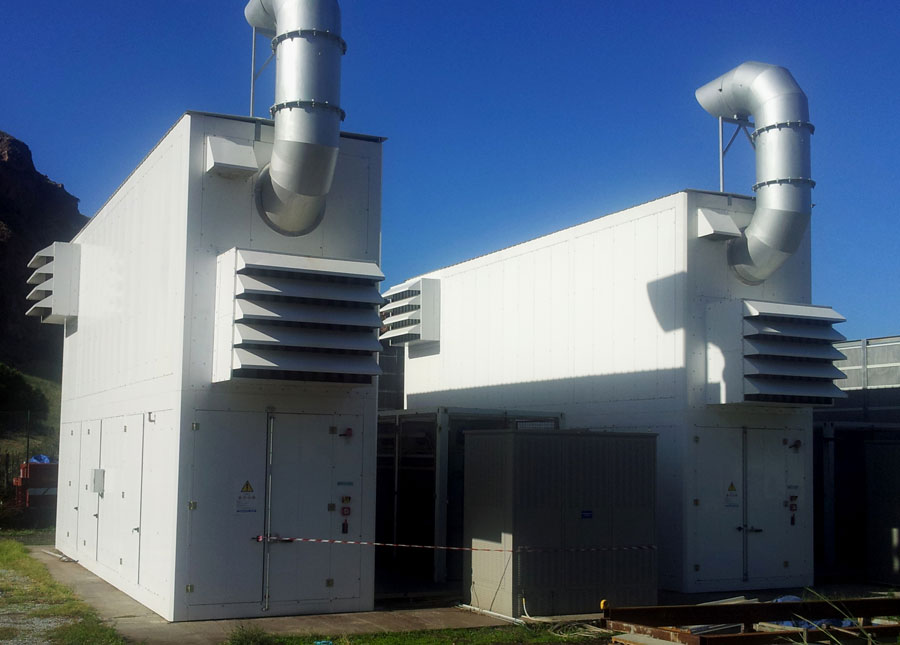

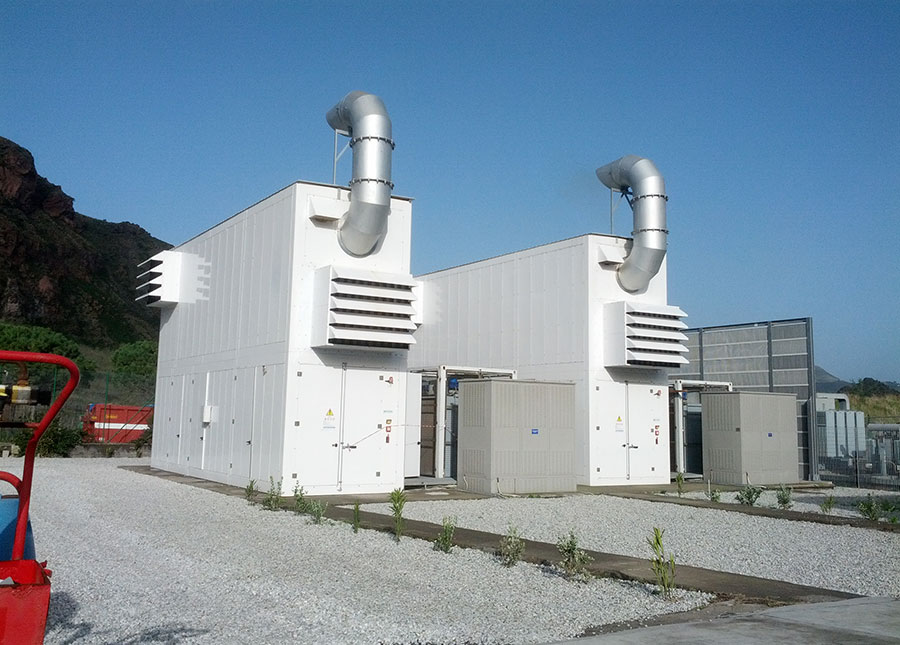

VULCANO ISLAND

  • Model: GS2500MTD-SH

  • Power: 2500 kVA in Continuous power

  • Frequency: 50 Hz

  • Voltage: 400 V

  • Motor: MTU 20V 4000 G23 – TA-Luft OPTIMIZER

  • Alternator: Marelli MJB 630 MA4

  • Soundproof SHELTERS at 50 dB (A) ± 3dB at 7 meters

  • Gas emissions abatement systems by means of SCR and DPF systems

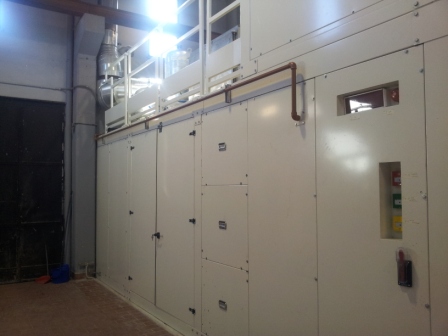

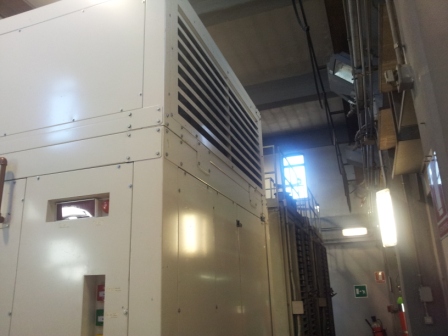

STROMBOLI ISLAND

  • Model: GS1250MTD-SH
  • Power: 1250 kVA in Continuous power
  • Frequency: 50 Hz
  • Voltage: 400 V
  • Motor: MTU 12V4000G21R- TA-Luft OPTIMIZER
  • Alternator: Marelli MJB 450 LB4

  • Soundproof SHELTERS at 50 dB (A) ± 3dB at 7 meters

  • Gas emissions abatement systems by means of SCR and DPF systems

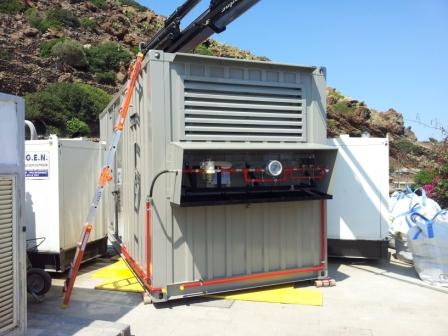

ALICUDI ISLAND

  • Model: GS250VOD-CT
  • Power: 250 kVA in Continuous power
  • Frequency: 50 Hz
  • Voltage: 400 V
  • Motor: Volvo tipo TAD 734 GE – Stage IIIA
  • Alternator: Marelli MJB 315 SB4

  • 20’ soundproof containers at 50 dB (A) ± 3dB at 7 meters

  • Gas emissions abatement systems by means of SCR and DPF systems

  • Model: GS125VOD-CT
  • Power: 125 kVA in Continuous power
  • Frequency: 50 Hz
  • Voltage: 400 V
  • Motor: Volvo tipo TAD 750 GE – Stage IIIA
  • Alternator: Marelli MJB 250 MA4

  • Indoor soundproof booth at 50 dB (A) ± 3dB to 7 meters

  • Gas emissions abatement systems by means of SCR and DPF systems

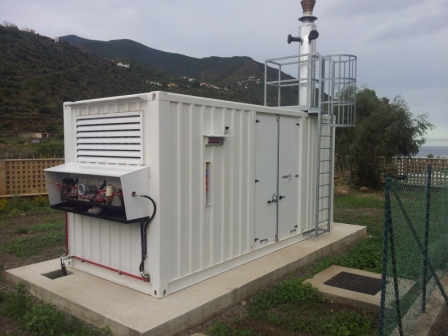

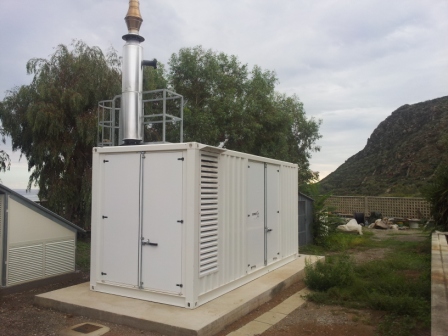

ISLAND OF FILICUDI

  • Model: GS275VOD-CF
  • Power: 275 kVA in Continuous power
  • Frequency: 50 Hz
  • Voltage: 400 V
  • Motor: Volvo tipo TAD 1351 GE – Stage IIIA
  • Alternator: Marelli MJB 315 SB4

  • 20’ soundproof containers at 50 dB (A) ± 3dB at 7 meters

  • Gas emissions abatement systems by means of SCR and DPF systems
